How to Deactivate IPMDoc Rev. No. 02 | Manual Saka SP05 | Date issued - 1/12/2020
First thing you have to do after successfully installing Saka SP05:
1. Deactivate Voicemail
Call your Telco service provider to deactivate the voicemail. If you do not deactivate the voicemail, every time the device calls you, you will be charged for not picking up the phone from the device which will automatically go to your voicemail.
If the device runs out of credit, the device will not be able to call you if there is a vibration on the motorcycle. If the credit on the device runs out, the device will not be able to call you if there is a vibration on the motorcycle as we only provide free data for 6 months does not include credit for text messages or making calls.
2. Download App dan login Use the Username and Password as we have emailed to you.
Link Download App untuk Android:
https://play.google.com/store/apps/details?id=com.stopanikmobilegpsclient.android
Link Download App untuk iOS:
https://itunes.apple.com/my/app/stopanik-gps-tracking-system/id1194004436?mt=8
MANUAL GPRS COMMAND

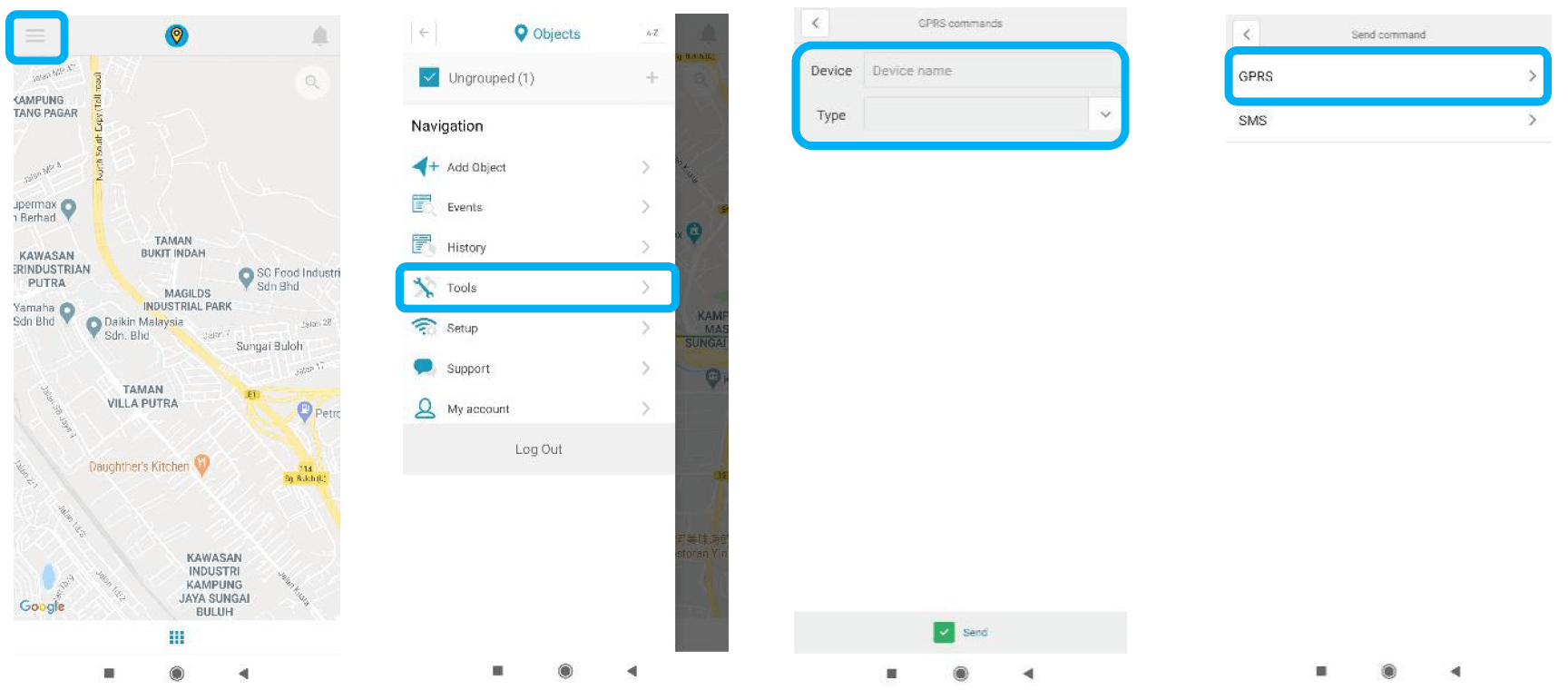

How to send Command from Stopanik Mobile Apps Click the 3 lines on the top left > click TOOLS > GPRS > choose DEVICE NAME > Choose the COMMAND > then SEND

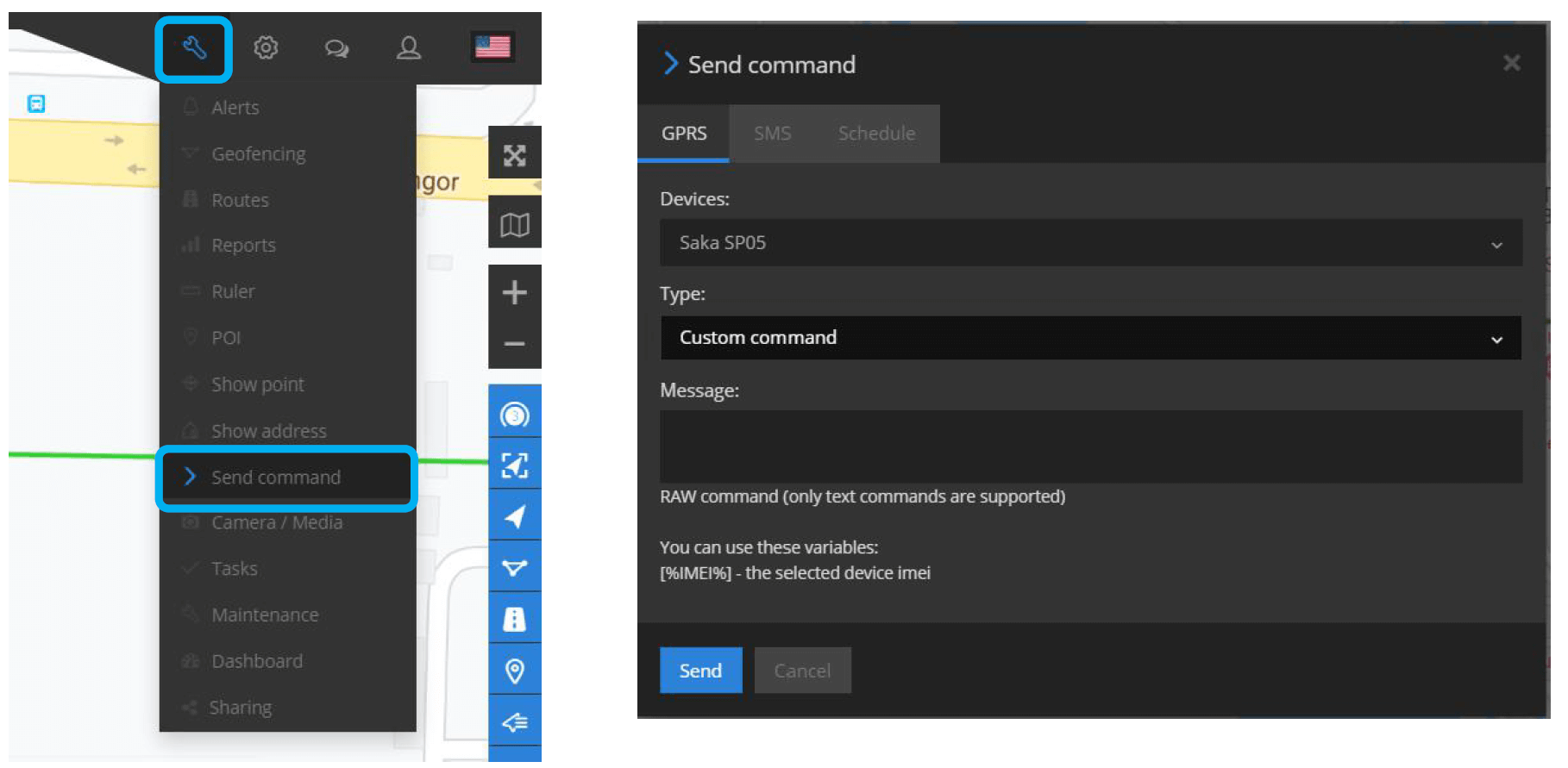

How to send Command from Website gps.stopanik.com
Click SPANNER icon > Click SEND COMMAND > choose DEVICE > choose TYPE COMMAND > click SEND
1. VIBRATION
Deactivate it when you service, repair, or wash motorcycles. When the refueling period you only need to turn on the ignition, Vibration will be temporarily disabled automatically.
2. IDLING
This command is used when you do not use the motorcycle or park the vehicle for more than a day and do not want the motorcycle battery to run out.
3. IPM (Intelligence Power Management)
To reduce motorcycle battery usage. However, the vibration sensitivity will be reduced. *Please send a command to activate IPM and Idling when parking the motorcycle for more than a day. you can read on the page “HOW TO OPTIMIZE THE USE OF MOTORCYCLE BATTERY THAT YOU NEED TO KNOW”.
4. ACC ALERT
If someone starts the motorcycle without your knowledge/key. Saka will contact you immediately. Deactivate before you ride. otherwise, Saka will continue to make calls to you as long as it is deactivated.
*GPRS Command successfully sent will be replied by Saka. Therefore, every SMS replied by Saka will involve costs. 1 SMS = 0.30 sen
HOW TO SEND SHORT SMS COMMAND
You can use Short SMS Command when there is no GPRS (internet) or if the device is offline (red icon). For example (command name) DY (send to device number) 011 1234 5678 XXXX
Make sure that each Short SMS command sent receives SMS feedback from the device. *Tips: when the device is online but the device does not reply it means that the balance in the device has run out. You can directly contact the support team to top-up the device sim card number. Selamat berSAKA

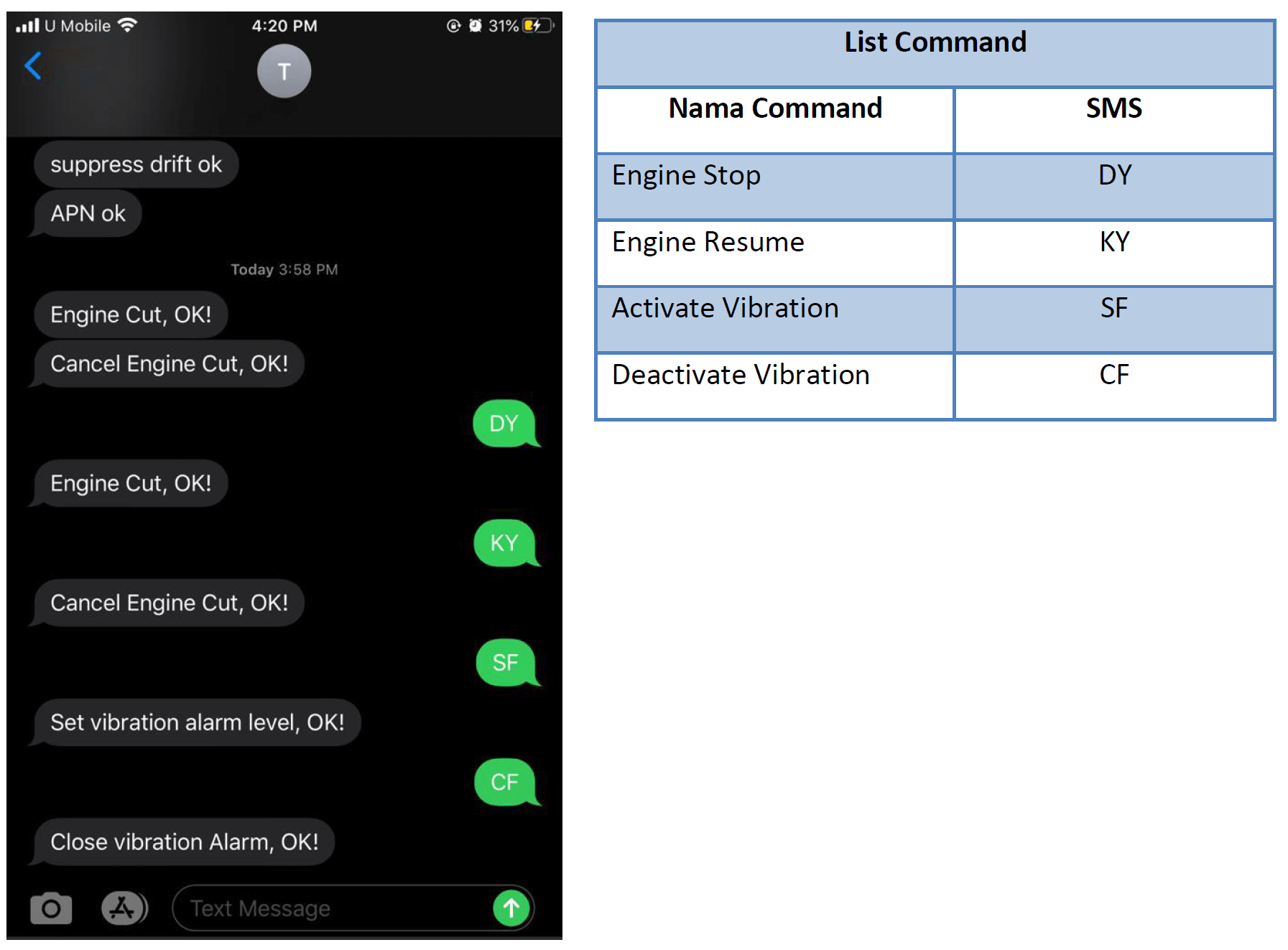

List Command
Nama Command SMS
Engine Stop = DY
Engine Resume = KY
Activate Vibration = SF
Deactivate Vibration = CF
HOW TO OPTIMIZE THE USE OF MOTORCYCLE BATTERY THAT YOU NEED TO KNOW
Saka SP05 directly uses the motorcycle battery and there is a 150mAh capacity battery backup. The fuse is also on the positive line of the Saka wire to protect it from excessive voltage. For example, when you jumper your motorcycle battery.
In Default Setting (IPM & Idling is deactivated), when parking SAKA will update every 5 minutes if there is GPRS (2G network). SAKA support 2G network only.

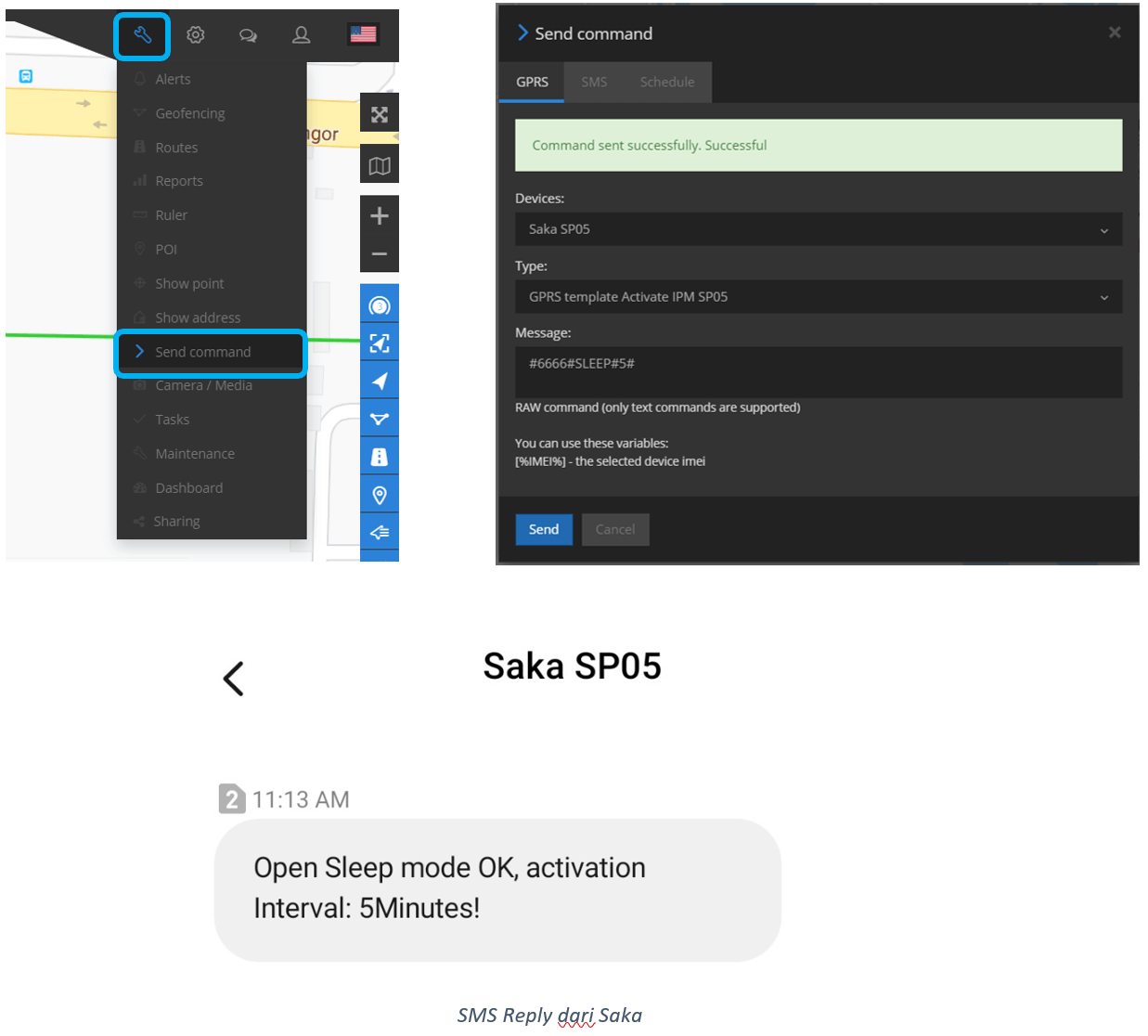

How to Activate IPM SMS Reply from Saka

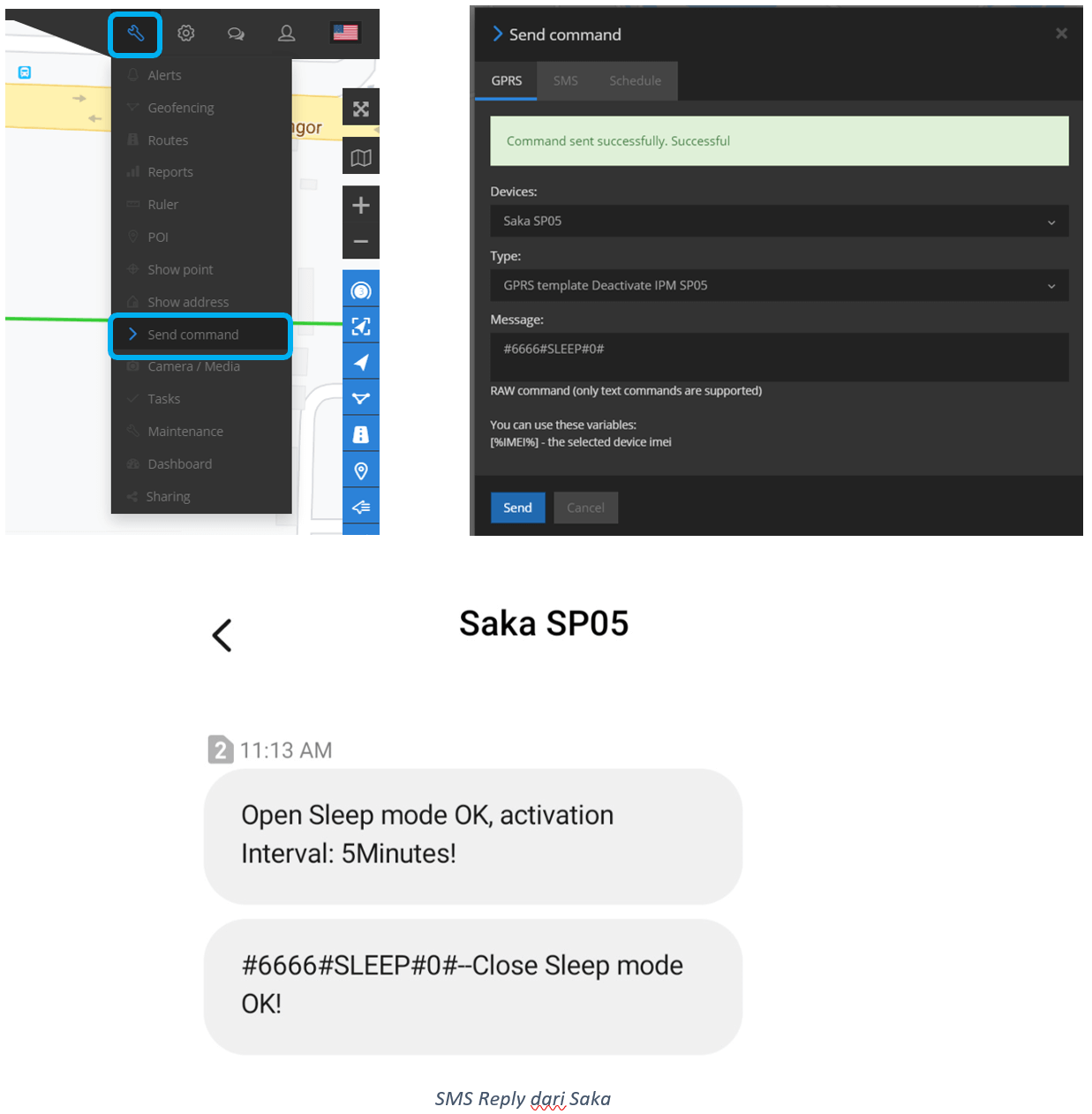

How to Deactivate IPM
This info is very important to protect the life of your motor battery.
SMS Reply from Saka
HOW TO GET NOTIFICATIONS FROM WEB & MOBILE APPS WHEN VIBRATION ALERT TRIGGERED
The advantage of setup vibration notifications on the web, you can still get notifications even if the
balance on the device sim card has run out. But we still recommend you to top-up the sim card
device so that you always get a call from SAKA. 1. Login to website gps.stopanik.com
2. Click SETUP icon
3. Click tab EVENTS > click ADD EVENT
4. Tick SHOW ALWAYS
In the device protocol choose 6023/gt06. In the parameter conditions type alarm (make sure all letters are lowercase and there is no space before or after the alarm text) In the parameter value type vibration (make sure all letters are lowercase and there is no space before or after the vibration text)
In the message box, you can type according to your wishes. this message will be displayed when you get notified Doc
5. Click SAVE
6. Go to icon TOOLS > click ALERTS
7. Click ADD ikon on the left screen
8. In the NAME box fill in the alert name, for example: "vibration alert" then tick DEVICE NAME
9. On the TYPE tab select CUSTOM EVENTS and tick on the event you created earlier
10. On the SCHEDULE tab, tick SCHEDULE, then click ALWAYS if you want to get daily notifications. You can customize it to your preferences
11. On the NOTIFICATIONS tab tick on SOUND NOTIFICATION and PUSH NOTIFICATION
12. Then click SAVE
13. Make sure you tick the NAME ALERT you have created. If you do not want to get notified you can UNTICK on the alert name
14. To make sure your alerts are working, you can check on the EVENTS tab
15. Make sure you have allowed notifications from Stopanik Mobile Apps on your phone by going to SETTINGS > press APPS > select MANAGE APPS > then find Stopanik applications > press on NOTIFICATIONS and make sure notifications from Stopanik applications are allowed. *each phone has a different setting. You can search the internet according to the phone model you are using.
FREQUENTLY ASKED QUESTION (FAQ
Q: WHEN GPRS COMMAND IPM & IDLING MUST BE SENT?
A: If the motorcycle is parked or static for more than 24 hours.
Q: WHY MUST SEND GPRS COMMAND IPM & IDLING?
A: To save on the use of motorcycle batteries at a minimum rate when parking. Saka SP05 will optimize the use of motorcycle battery if GPRS command IPM & Idling has been sent. Attention! Every command sent must be able to receive reply SMS from Saka. If you do not receive a reply SMS from Saka, there are two problem situations:
1) Your device credit has run out. Please issue ticket through Stopanik Support website to top up your device sim card, minimum credit transfer minimum RM10 on Stopanik bank account 562768419837 Stopanik Sdn Bhd.
*Tips: if you want to know the credit is still left you can refer to the page How to Send Short SMS Command. Remember! The lite package is the only data you can get for FREE. For credit you can only get FREE RM4 once. we have already informed you to Deactivate Voicemail the number that received Saka call (Please refer to Saka SP05 Manual).
2) Absence of GPRS (2G) network for example in basement areas. Multilevel parking, between buildings, rooftops, and areas with GPRS signal barriers. Please send command where there is a network.
Q: HOW TO KNOW SAKA HAS RESPONSE THE COMMAND?
A: #6666#SLEEP#5# = Activate IPM
#6666#SLEEP#0# = Deactivate IPM
#6666#SST#60# = Activate Idling
#6666#SST#0# = Deactivate Idling

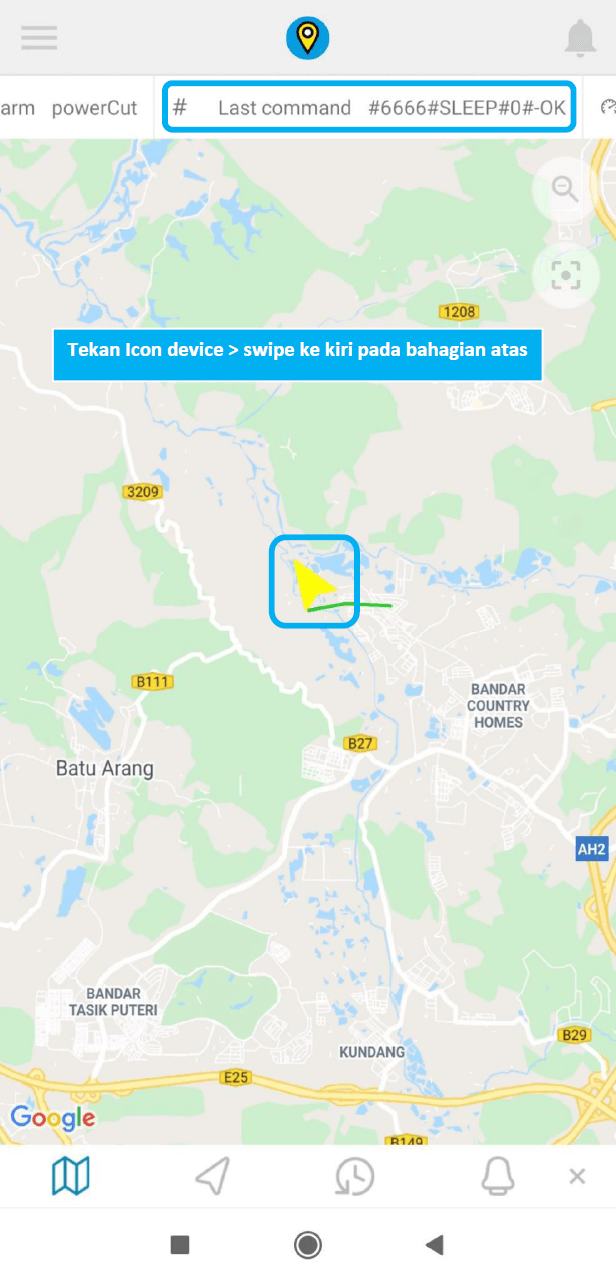

This is the Last Command that can be viewed on the sensor panel which indicates the command on
Saka has been successfully sent.
Q: IF YOU ACTIVATE IPM & IDLING WHAT WILL HAPPEN IF YOU DO NOT DEACTIVATE IT AGAIN?
A: Depends on your choice whether to continue activating or deactivating. Only when in IPM & Idling status is activated Saka less active and vibration sensitivity will decrease. When you touch the motorcycle it will be slow to respond. Also will slow to update location to the server.
Q: WHAT IS SAKA BATTERY?

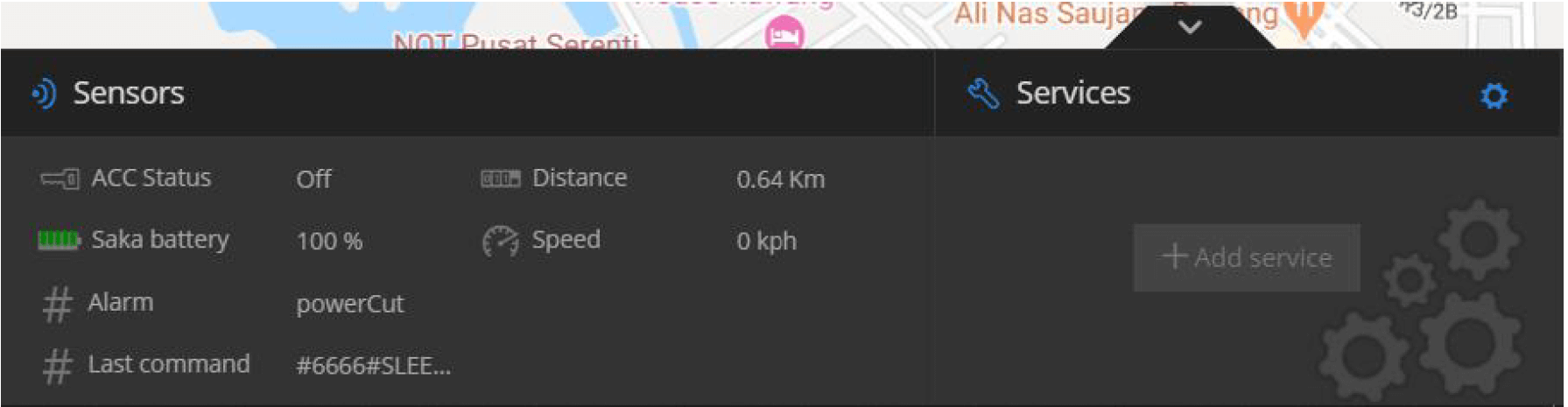

A: Look at the sensor panel Stopanik Mobile App or website gps.stopanik.com Saka Battery is the level of Saka battery capacity (150mAh).
100% = Full
16% = The battery is almost empty
100% -> 83% -> 66% ->50% -> 33% -> 16%
When the battery level is at 66%, Saka will call you many times to remind you that the device battery is low power.
In this case, Saka running use a 150mAh battery backup. Then there is the PowerCut which you can see on the sensor panel: gps.stopanik.com
Alarm - PowerCut
This PowerCut besides battery voltage is low, it shows there are some situations where:
1) SAKA has been revoked.
2) The battery / positive wire / negative wire of the battery has been removed.
3) The positive wire (Saka harness wire) has been cut/removed.
Q: WHAT HAPPENS IF YOU FORGET TO SEND IPM & IDLING?
A: The motorcycle battery will run out. Remember! Saka works at a minimum current rate. The risk for the battery runs out is high if you forget to send GPRS Command IPM & Idling.
Q: IS THERE AN EFFECT ON SAKA IF THE BATTERY IS OUT?
A: No. Even if you jumper starts the battery, the fuse on the positive wire (on the Saka harness) will burn first if overvoltage occurs.
Q: WHAT DO I HAVE TO DO IF THE MOTORCYCLE BATTERY IS OUT?
A: Relax. Do not panic. Take a deep breath. you can jumper start the battery or replace it with a new battery. It is better to save the depleted battery if it can be recharged as a backup later.
Q: I GOT A CALL FROM SAKA BUT DID NOT GET NOTIFICATION FROM MOBILE APPS?
A: Usually this will happen when the device does not have an internet connection (GPRS). for example: you park the motorcycle in the basement. You will still get calls from the device because the device still has a GSM signal to make calls to your phone. GSM: to make calls and send SMS. GPRS: to send data over the internet. Hope this info is useful for you.
